WATER WELL/ SPA / GEOTHERMAL RIGS
Popular model : Drilling Rigs
| Model Name |
Main Usage |
Build-In Compressor |
Engine (Basic) Max Power |
Engine Option |
Rod Size (mm) |
Drilling Deth(m) |
Pull-Up Capacity |
Rig Weight |
Rig Size(mm) |
more |
|---|---|---|---|---|---|---|---|---|---|---|
| 8W | Water Well | D4BB 64 HP / 2500 RPM |
8ton | 3,500kg | L : 5,328 W : 1,705 H : 5,379 |
→ | ||||
| 10W | Water Well | D4DA 105 HP / 2300 RPM |
D4DD | 250 | 10ton | 5,800kg | L : 6,015 W : 1,950 H : 2,450 |
→ | ||
| 10WCP300 | Water Well | CP300 | D4GB 150 HP / 2250 RPM |
250 | 10ton | 5,800kg | L : 5,200 W : 1,850 H : 2,350 |
→ | ||
| 12W | Water Well /SPA | D4DA 105 HP / 2300 RPM |
D4DD | 12ton | 5,800kg | → | ||||
| 14WCP700 | Water Well /SPA | CP700 | DL09 085A 315 HP / 2100 RPM |
300 | 14ton | 12,490kg | L : 5,257 W : 2,540 H : 2,578 |
→ | ||
| 16W | SPA / Geothermal | D6GA 220 HP / 2000 RPM |
600 | 16ton | 12,000kg | L : 8,232 W : 2,200 H : 2,513 |
→ | |||

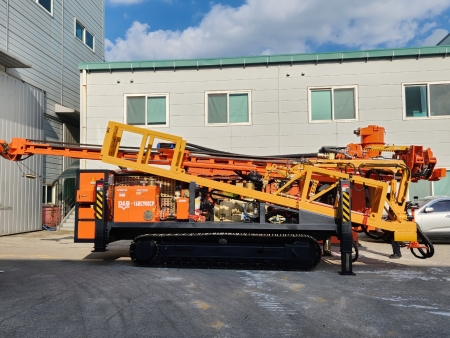

| 16WCP500 | Water Well /SPA | CP500 CP750 |
DL08 290 HP / 1750 RPM |
600 | 16ton | 14,000kg | L : 8,934 W : 2,200 H : 2,608 |
→ | ||

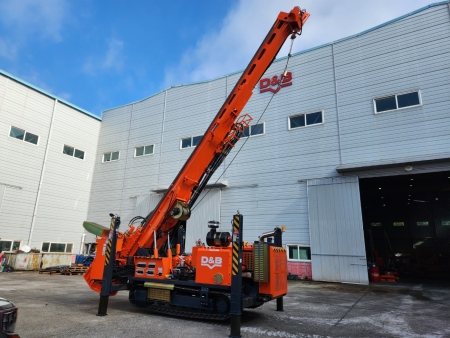

| 30W | SPA / Geothermal | 086TI 290 HP / 2200 RPM |
DL08 | 1,000 | 30ton | 13,350kg | L : 10,315 W : 2,200 H : 2,791 |
→ | ||
| 30WCP900 | Water Well/ SPA | CP900 CP1150 |
D6CC 530 HP / 1800 RPM |
600 | 30ton | 10,000kg | L : 8,934 W : 2,200 H : 2,608 |
→ | ||
| 40W | SPA / Geothermal | 3,000 | 40ton | 26,000kg | L : 14,000 W : 2,800 H : 3,700 |
→ | ||||
| 80W | SPA / Geothermal | 3,000 | 80ton | 26,000kg | L : 14,000 W : 2,800 H : 3,700 |
→ |
Special : Drilling Rigs
| Model Name |
Main Usage |
Build-In Compressor |
Engine (Basic) Max Power |
Engine Option |
Rod Size (mm) |
Drilling Deth(m) |
Pull-Up Capacity |
Rig Weight |
Rig Size(mm) |
more |
|---|---|---|---|---|---|---|---|---|---|---|
| 120W | Geothermal | D6HA | 3,000 | 120ton | 31,500kg | L : 17,186 W : 3,256 H : 3,600 |
→ | |||
| 150W | Geothermal | 3,500 | 150ton | → | ||||||
| 180W | Geothermal | 4,000 | 180ton | → | ||||||
| 250W | Geothermal | 4,500 | 250ton | L : 16,513 W : 3,200 H : 16,623 |
→ | |||||
| 350W | Geothermal | 5,000 | 350ton | 28,000kg | L : 19,794 W : 3,200 H : 19,904 |
→ |
Air Compressor / Water(Mud) Pump / Power Pack
| Model Name |
Main Usage |
Type | a | b | c | d | e | f | g | more |
|---|---|---|---|---|---|---|---|---|---|---|
| D&B-980CP | compressor | BOX Type Crawler Self-loading |
CFM 1236 PSI 362 |
HP 540 rpm 1800 |
→ | |||||
| D&B-1070CP | compressor | BOX Type Crawler Self-loading |
→ | |||||||
| D&B-1150CP | compressor | BOX Type Crawler Self-loading |
→ | |||||||
| D&B-500WP | water pump | → | ||||||||
| D&B-300MP | mud pump | → | ||||||||
| D&B-800MP | mud pump | → | ||||||||
| D&B-1200MP | mud pump | → | ||||||||
| D&B-1500MP | mud pump | → | ||||||||
| power pack | power pack | → |
